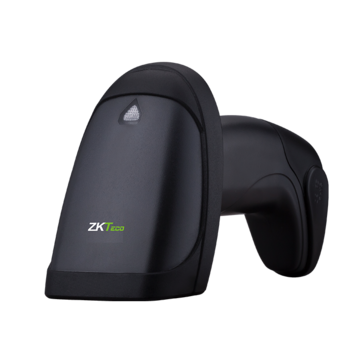

Model Name: ZKB104
Mechanical Characteristics
Light source: 650nm laser
Scanning patterns: Single line scanning
Scanning speed: 200 times/s
Minimum Resolution: 0.10mm
Decoding Depth: 0-540mm
Scanning Angle: 30°,65°,60°(skew , pitch , roll)
Decoding Capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93Code 128,EAN128,Codaber,Industoal 2 of 5, Interleave 2 of 5,Matrix 2 of 5, MSI, GS1
Interface Supported: RS232,USB
Print Contrast: 30% minimum reflective difference
Decoding error rate: 1/5 million
Indicator: CE, FCC, ROHS, IP65, IEC60825
Operating Mode: Hand-held, Auto-detection
Physical Characteristics
Dimensions: 185mm×110mm×85mm
Net Weight: 180g 150g
Material: ABS+PTR
