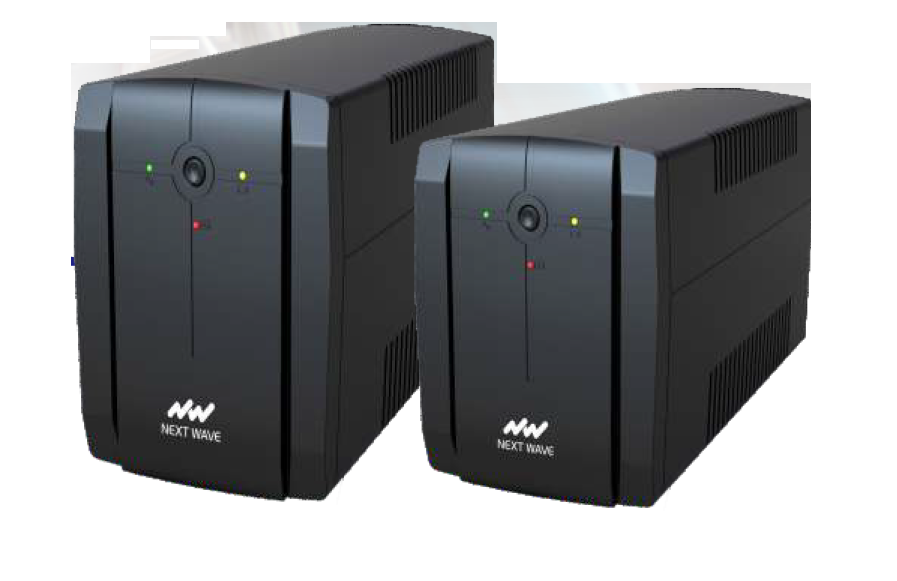

UPS NEXT WAVE 850VA

Model
Nextwave Mega power 850va interactive

Cabacity
850 va / 510 W

INPUT


Voltage
100 / 110 / 120 V: 80 ~ 150 Vac; 220 / 230 / 240 V: 162 ~ 295 Vac (145 ~ 295 Vac optional)

Frequency
50 / 60 Hz ± 10% (auto-sensing)

OUTPUT


Voltage
100 / 110 / 120 Vac ± 10% or 220 / 230 / 240 Vac ± 10%

Frequency
50 / 60 Hz ± 1% (auto-sensing)

Waveform
Mains mode: pure sine wave; Battery mode: simulated sine wave

Transfer time
Typical 2 ~ 7 ms, 10 ms max.

BATTERIES


DC voltage
12 V

Inbuilt battery
12 V / 8.0 Ah

Recharge time
6 ~ 8 h

OTHERS


Protections
Short circuit - battery overcharge – overdischarge – overload - surge

Humidity
20 ~ 90 % RH @ 0 ~ 40℃ (non-condensing)

Noise level
≤ 45 dB (1 m)

Dimensions (W×D×H) (mm)
100 × 290 × 140

Net weight (kg)
5.2

Gross weight (kg)
5.5

Warranty
one year
