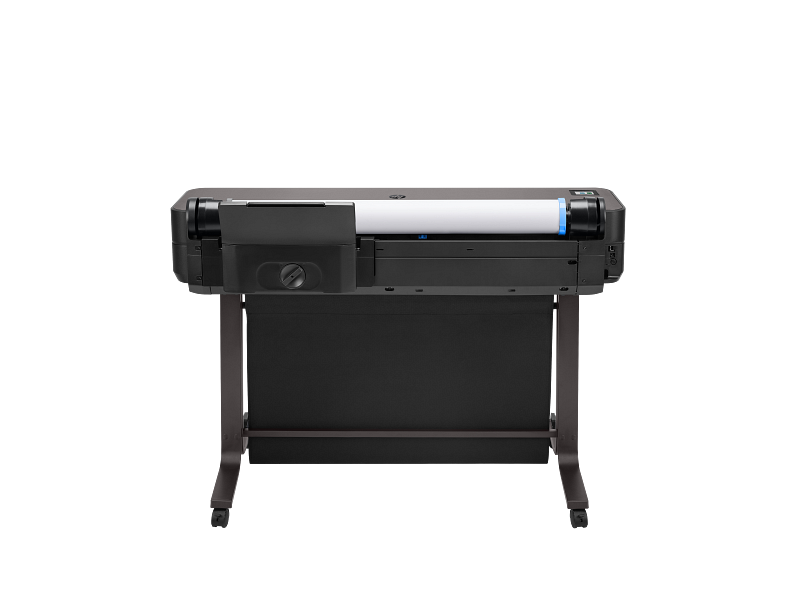

HP DesignJet T630 36-in Printer (5HB11A)

Functions

Print

Print speed

30 sec/page on A1, 76 A1 prints per hour

Ink drop

5.5 pl (C, M, Y); 12 pl (K)

Print head nozzles

1376

Print cartridge/bottle volume

80 ml (K); 38 ml (K); 29 ml (C, M, Y)

Ink types

Dye-based (C, M, Y); pigment-based (K)

Print Cartridges/Bottle, Number

4 (C, M, Y, K)

Print heads

1 (cyan, magenta, yellow, black)

High capacity of page yield (colour)

20 ml of ink yields 101 A1 pages, taking into account maintenance routines

Print Cartridge/Bottle, Color(s)

Cyan, magenta, yellow, black

Print quality color (best)

Up to 2400 x 1200 optimised dpi

Maximum optical density (black)

8 L* min/2.10 D

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes standard (metric rolls)

279 to 914 mm

Roll external diameter

100 mm

Roll maximum input

1

Roll maximum weight

6.2 kg

Recommended media

Q1396A HP Universal Bond Paper (FSC® certified)  (recyclable)  610 mm x 45.7 m;C6019B HP Coated Paper (FSC® certified)  (recyclable)  610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC® certified)  (recyclable)  610 mm x 30.5 m

Media thickness

Up to 11.8 mil

Media thickness maximum (metric)

Up to 0.3 mm

Media width, maximum

914 mm

Supported Primary Applications

Line drawings; Presentations; Renderings

Non-printable area (cut-sheet)

5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)

Model size

914 mm

Internal Storage

None

Line accuracy

±0.1%

Printer drivers included

Raster driver for Windows and macOS; HP Click Driver for Windows 11

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Print technology

HP Thermal Inkjet

Theoretical minimum line width

0.02 mm

Printing path

Print Anywhere with HP Smart app, HP Click App, HP Click Driver for Windows 11, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Remote print enabled

Yes

Print multi-size files in one click

Yes

Dimensions (W x D x H)

1317 x 605 x 932 mm

Package dimensions (W x D x H)

1470 x 575 x 590 mm

Weight

34.7 kg

Package weight

55.3 kg

Memory

1 GB

Acoustic power emissions (active, printing)

5.8 B(A) (operating), <3.4 B(A) (idle)

Acoustic pressure emissions

42 dB(A) (operating), <16 dB(A) (idle)

Operating humidity range

20 to 80% RH

Non-Operating Humidity Range

0 to 95% RH

Operating temperature range

5 to 40ºC

Operating temperature range

41 to 104ºF

Storage temperature range

-25 to 55ºC

Storage temperature range

-13 to 131ºF

Operating altitude

Up to 3000 m

Post consumer recycled plastic in hardware by weight of plastic

30%

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Software included

HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Electromagnetic compatibility

Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)

Manufacturer Warranty

one year

What's in the box

HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
